产品型号Product model:
TCK56A/500 斜轨数控车床Slant Bed CNC Lathe
产品特点Product Features:
1.高速主轴单元,搭配中空液压 卡盘和油缸 High-speed spindle unit, with hollow hydraulic chuck and cylinder | 7.采用SKF/NACHI进口丝杆轴承 Adopt SKF/NACHI imported brand screw rod7. |
2.高刚性床头箱 High rigidity spindle box | 8可选配伺服电机驱动编程尾座 Optional with programmable tailstock driven by servo motor |
3.标配液压移动尾座 Standard with hydraulically moved tailstock | 9.尾座移动采用台湾滚柱线轨 Tailstock movement adopts taiwan roller linear rails |

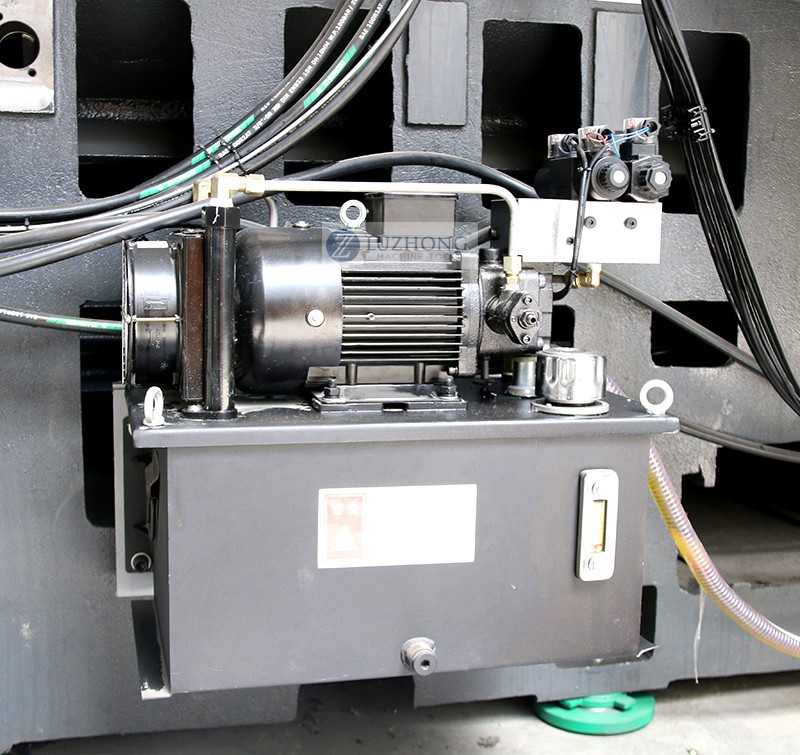

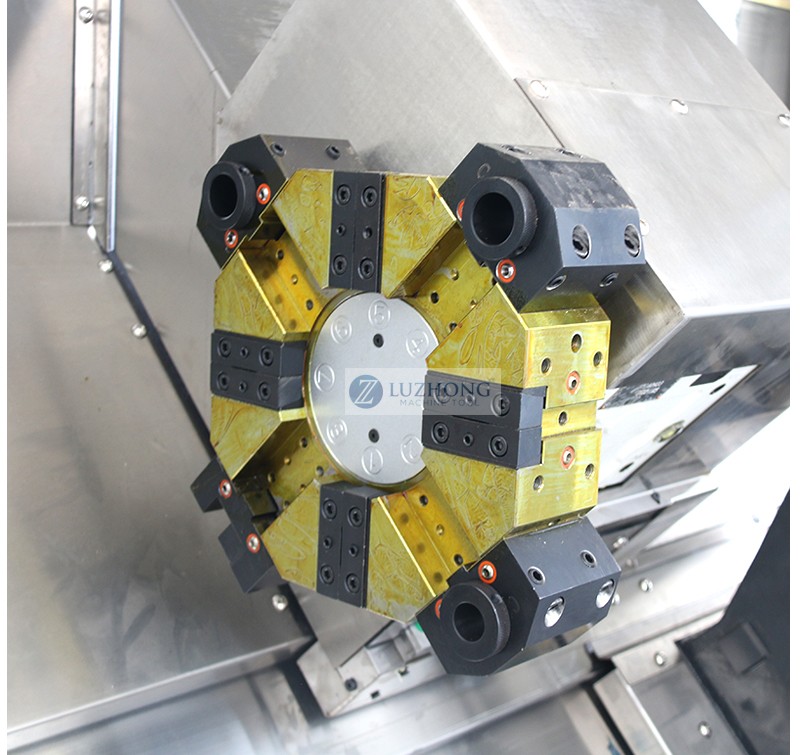

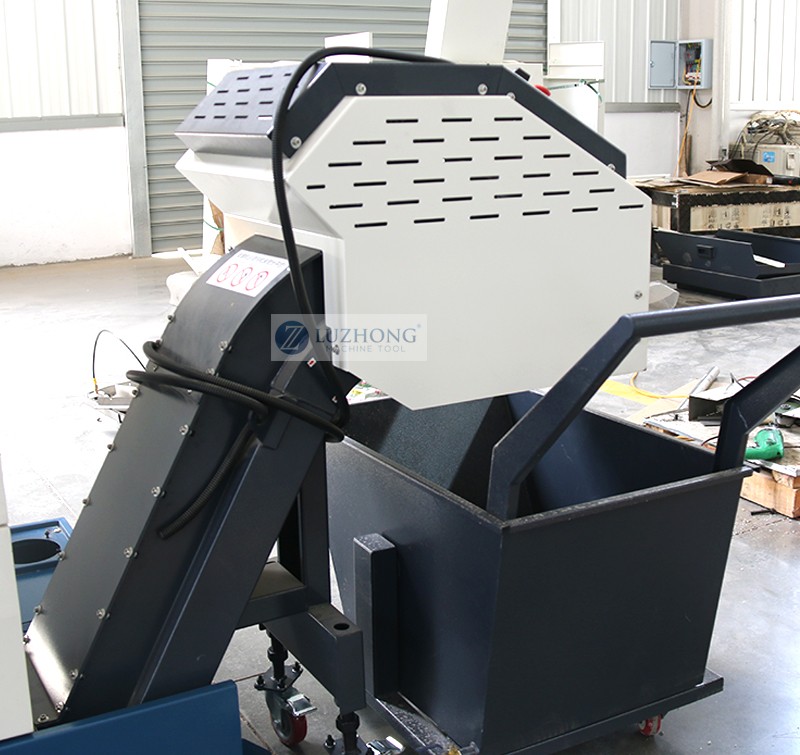

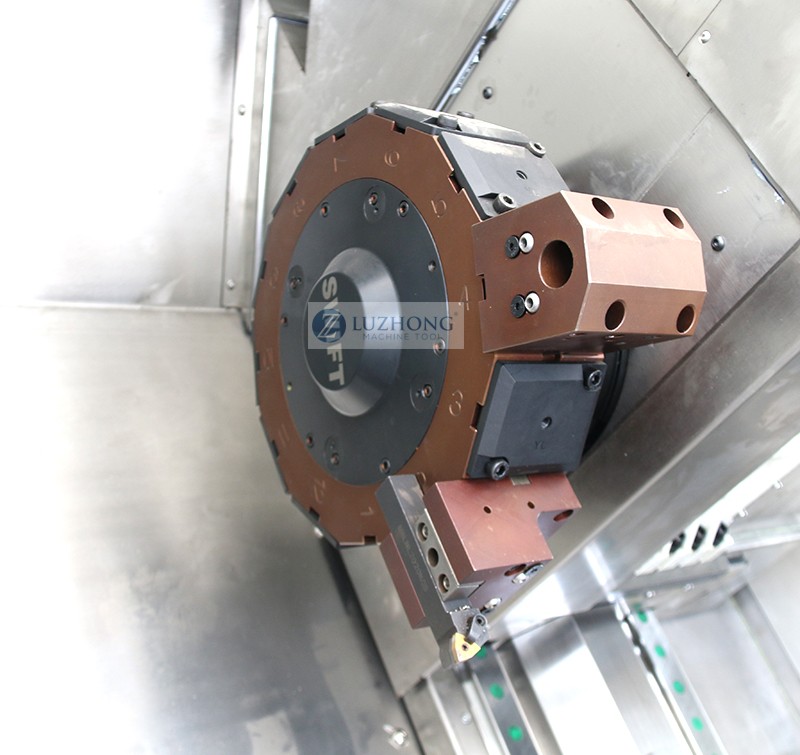

4.标配8工位伺服刀塔,可选配动力刀塔 Standard with 8-station servo turret optional with power turret | 10.45°整体斜身床结构 45° integral slant bed structure |
5.X/Z轴均采用台湾线轨 X/Z axis adopts taiwan linear rails | |
6.采用台湾/南京滚珠丝杠 Using taiwan / Nanjing ball screw |

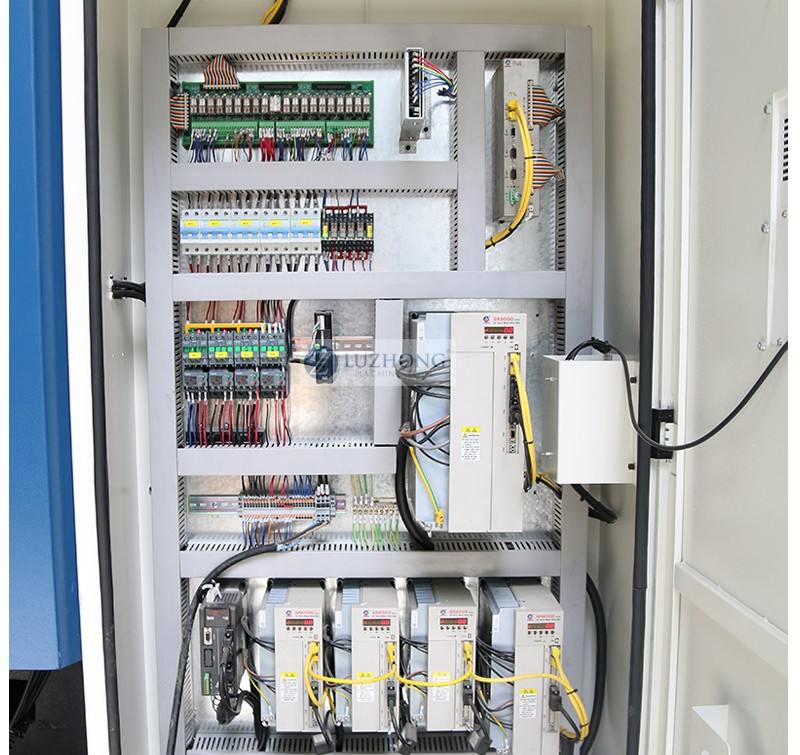

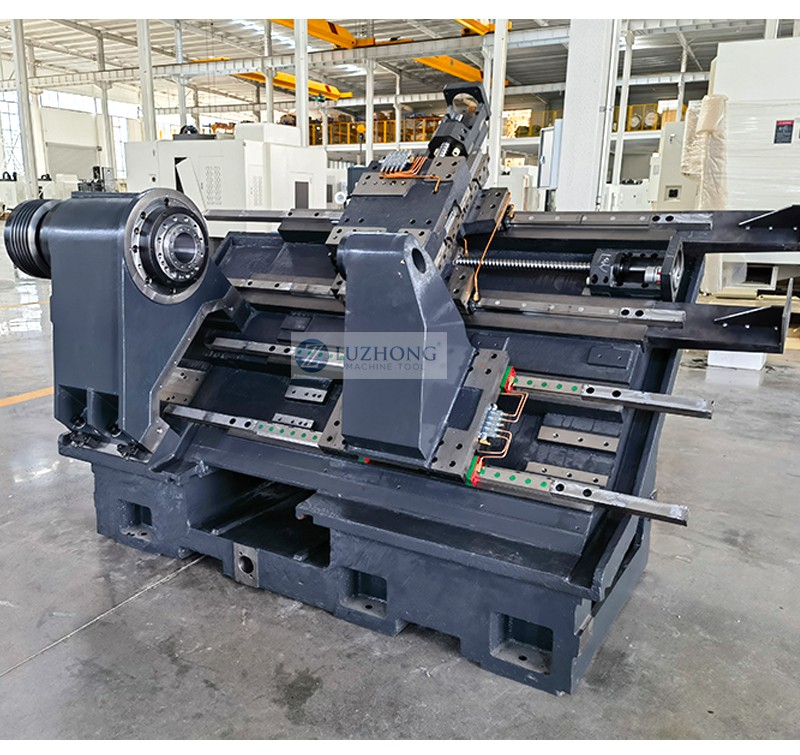

产品主要技术参数Main technical parameters of the product:
SPECIFICATIONS | Units | TCK56/500 | ||
床身上最大回转直径 | Swing over bed | mm | 560 | |
横滑板上最大回转直径 | Swing over cross slide | mm | 350 | |
最大工件长度 | Distance between centers | mm | 500 | |
最大切削直径 | Max. Turning diameter | mm | 350 | |
标准切削直径 | Std. Cutting diameter | mm | 280 | |
主轴孔径 | Spindle bore | mm | 65/80 | |
棒料通孔直径 | Bar capacity | mm | 50/65 | |
主轴端部形式 | Spindle nose type | - | A2-6(可选Opt.A2-8) | |
主轴转速级数 | Spindle speed steps | - | 无级Stepless | |
主轴转速范围 | Spindle speed range | rpm | 50~4500 | |
卡盘规格 | Chuck | - | 8寸液压卡盘(可选10寸)8'' hydraulic chuck (Opt. 10'') | |
刀架类型 | Turret/tool post | - | 8工位伺服刀塔 Servo turret 8 position | |
刀具尺寸 | Tool size | mm | 25*25 | |
X轴行程 | X axis travel | mm | 200 | |
Z轴行程 | Z axis travel | mm | 550 | |
X轴快速进给速度 | X axis rapid traverse | mm/min | 30 | |
Z轴快速进给速度 | Z axis rapid traverse | mm/min | 30 | |
主电机功率 | Main motor power | kw | /11/15 | |
尾座套筒锥度 | Tailstock quill taper | - | MT4(可选Opt.MT5) | |
尾座套筒行程 | Tailstock quill travel | mm | 无 | |
尾座行程 | Tailstock travel | mm | 400 | |
导轨形式 | Guide rail type | - | 斜床身线轨 Slant bed linear rail | |
机床重量 | Machine weight | kg | 3700 | |
外形尺寸(长×宽×高) | Overall dimension(L*W*H) | mm | 2800*1860*1850 |
