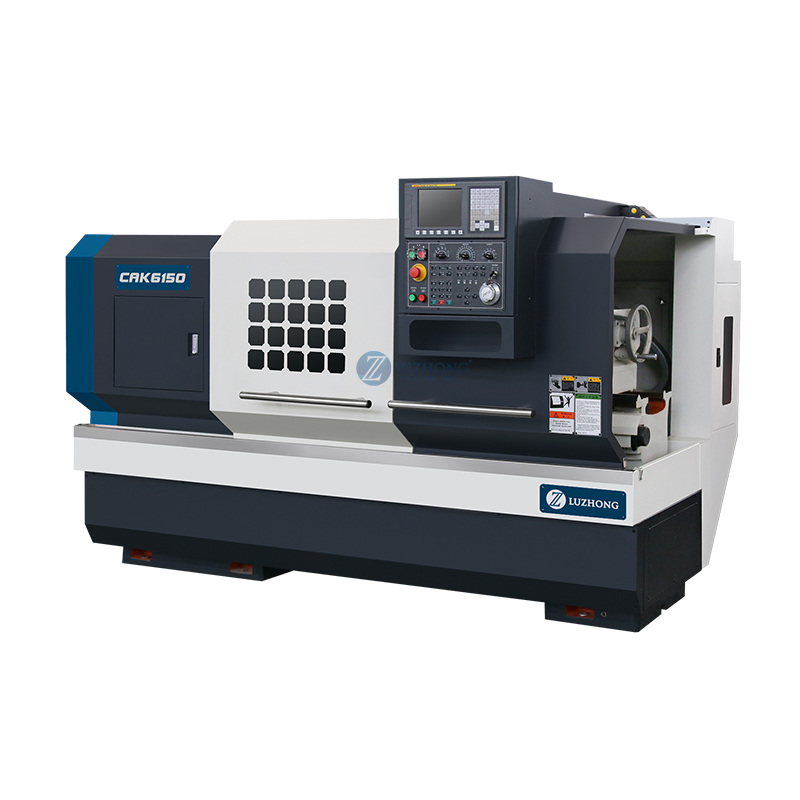

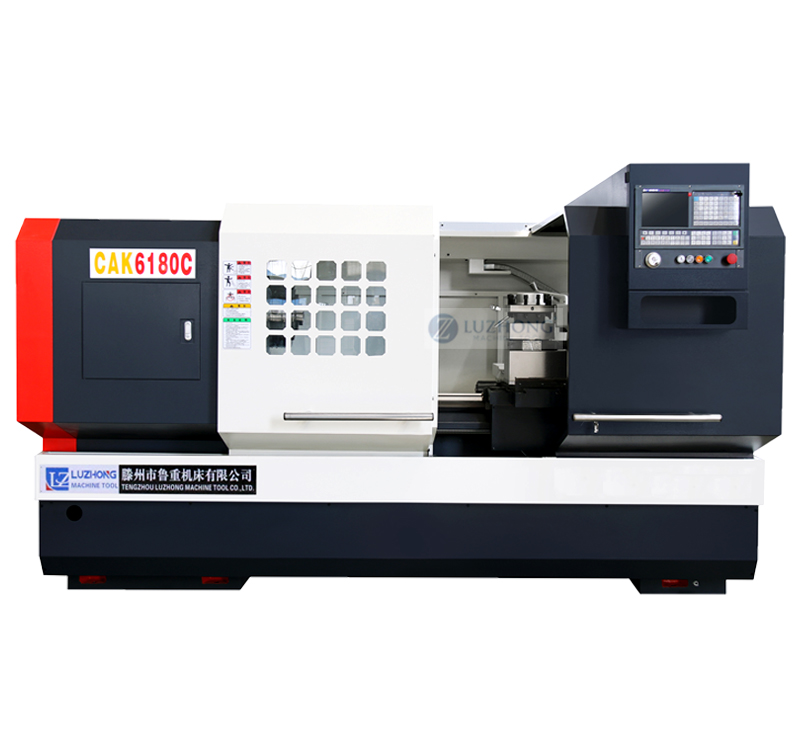

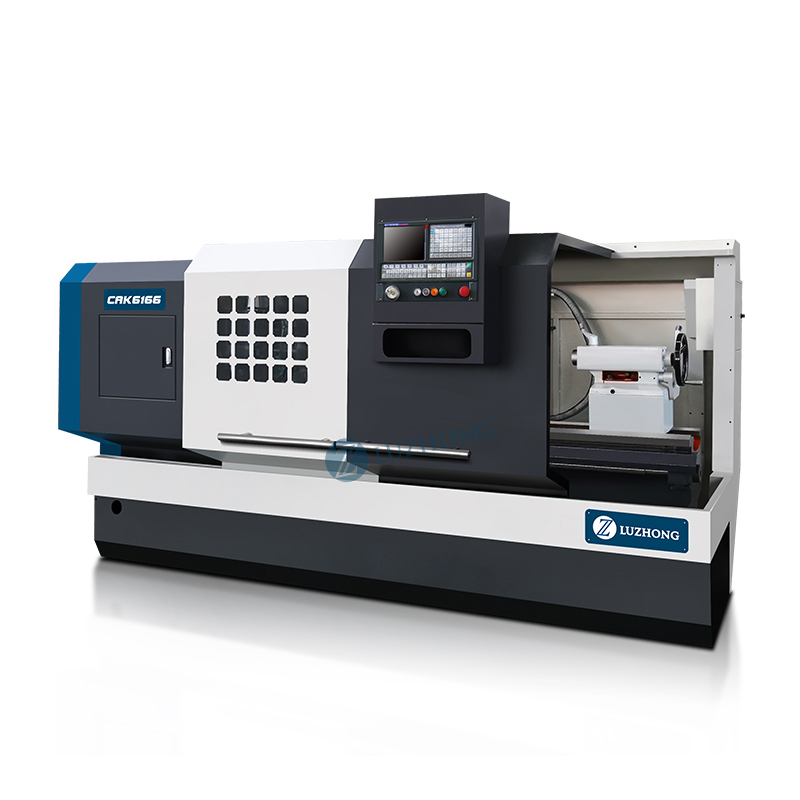

CAK6140 CAK6150 CAK6166 CAK6180 重型数控车床

立即咨询暂无

产品描述

产品主要技术参数:

主要技术参数	SPECIFICATIONS	Units	CAK6140CAK6140BCAK6140C	CAK6150CAK6150BCAK6150C	CAK6161BCAK6161C	CAK6166BCAK6166C	CAK6180BCAK6180C
床身上最大回转直径	Swing over bed	mm	400	500	610	660	800
横滑板上最大回转直径	Swing over cross slide	mm	180	280	350	380	520
最大工件长度	Distance between centers	mm	750/1000/1500/2000/3000	750/1000/1500/2000/3000	750/1000/1500/2000/3000	750/1000/1500/2000/3000	750/1000/1500/2000/3000
主轴孔径范围	Spindle bore	mm	52,(80 for B),[105 for C]	52,(80 for B),[105 for C]	(80 for B),[105 for C]	(80 for B),[105 for C]	(80 for B),[105 for C]
主轴孔径锥度	Spindle bore taper	-	MT6,(φ90 1:20 for B),[φ113 1:20 for C]	MT6,(φ90 1:20 for B),[φ113 1:20 for C]	(φ90 1:20 for B),[φ113 1:20 for C]	(φ90 1:20 for B),[φ113 1:20 for C]	(φ90 1:20 for B),[φ113 1:20 for C]
主轴鼻端型号	Spindle nose type	-	C6,(D8 for B),[D8 for C]	C6,(D8 for B),[D8 for C]	C6,(D8 for B),[D8 for C]	C6,(D8 for B),[D8 for C]	C6,(D8 for B),[D8 for C]

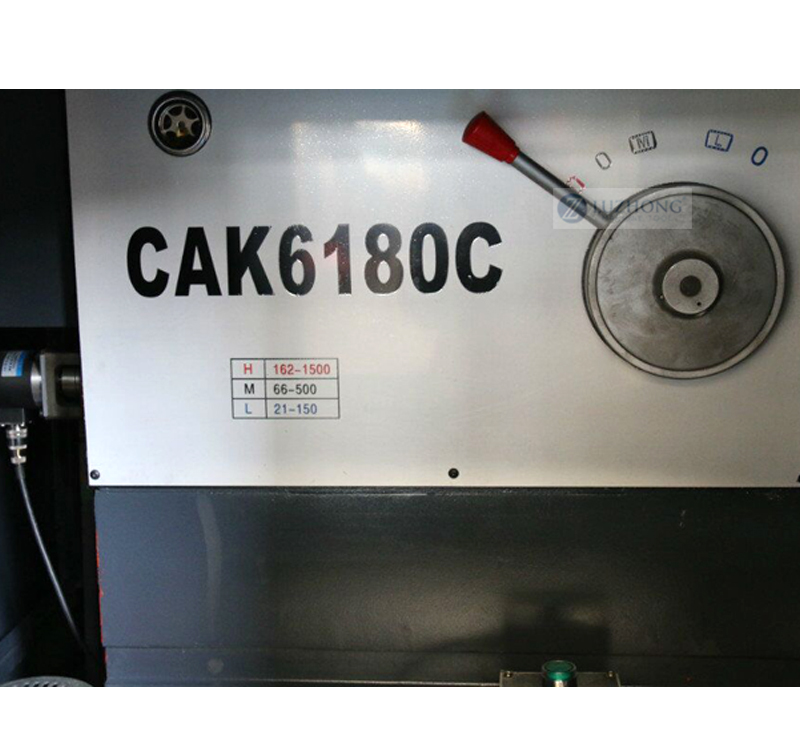

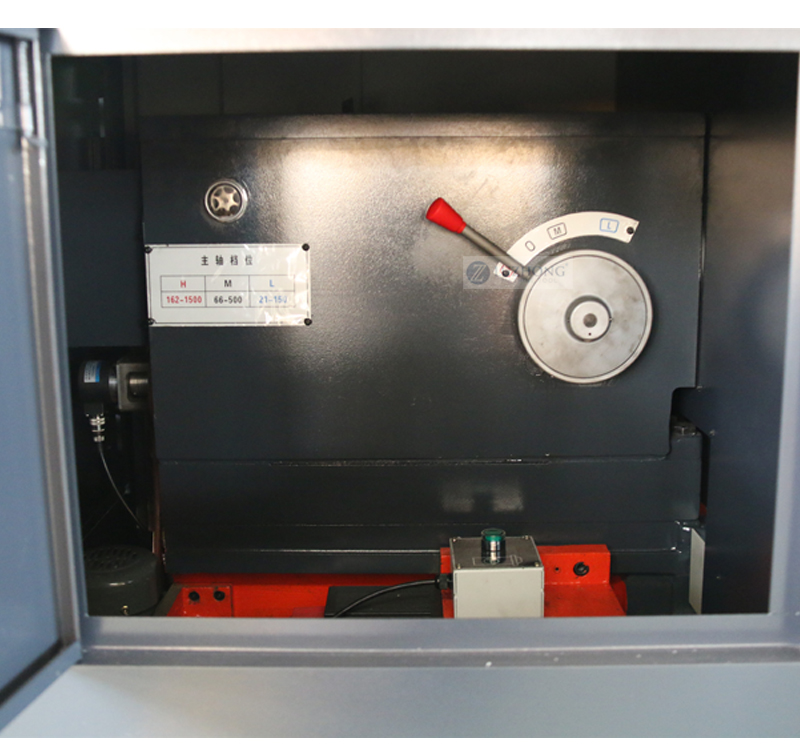

主轴转速级数	Spindle speed steps	-	手动3档Manual 3 steps (选配Optional: stepless)	手动3档Manual 3 steps (选配Optional: stepless)	手动3档Manual 3 steps (选配Optional: stepless)	手动3档Manual 3 steps (选配Optional: stepless)	手动3档Manual 3 steps (选配Optional: stepless)
主轴转速范围	Spindle speed range	rpm	21-150,66-500,162-1500 (选配Optional: 100-1600 )	21-150,66-500,162-1500 (选配Optional: 100-1600 )	21-150,66-500,162-1500 (选配Optional: 100-1600 )	21-150,66-500,162-1500 (选配Optional: 100-1600 )	21-150,66-500,162-1500 (选配Optional: 100-1600 )
刀架类型	Turret/tool post	-	4工位电动刀架 Eletric 4 position	4工位电动刀架 Eletric 4 position	4工位电动刀架 Eletric 4 position	4工位电动刀架 Eletric 4 position	4工位电动刀架 Eletric 4 position
刀具尺寸	Tool size	mm	25 x 25	25 x 25	25 x 25	25 x 25	25 x 25
X轴行程	X axis travel	mm	200	250	310	330	400
Z轴行程	Z axis travel	mm	750/1000/1500/2000/3000	750/1000/1500/2000/3000	750/1000/1500/2000/3000	750/1000/1500/2000/3000	750/1000/1500/2000/3000
X轴快速进给速度	X axis rapid traverse	mm/min	6000	6000	6000	6000	6000
Z轴快速进给速度	Z axis rapid traverse	mm/min	10000	10000	10000	10000	10000
尾座套筒直径	Tailstock quill diameter	mm	75	75	75	75	75
尾座套筒锥度	Tailstock quill taper	-	MT5	MT5	MT5	MT5	MT5
尾座套筒行程	Tailstock quill travel	mm	150	150	150	150	150
主轴电机	Main spindle motor	kw	7.5	7.5	7.5	11	11
冷却泵电机	Coolant pump motor	kw	0.125	0.125	0.125	0.125	0.125
机床重量Machine weight	Weight for 750	kg	2450	2500	2550	2650	2750
	Weight for 1000	kg	2550	2600	2650	2750	2850
	Weight for 1500	kg	2650	2700	2750	2850	2950
	Weight for 2000	kg	3050	3150	3250	3350	3450
	Weight for 3000	kg	3850	3950	4050	4150	4250
外形尺寸Overall dimension	Dimension for 750	mm	2550x1650x1700	2550x1650x1750	2550x1700x1800	2550x1750x1850	2550x1750x1900
	Dimension for 1000	mm	2750x1650x1700	2750x1650x1750	2750x1700x1800	2750x1750x1850	2750x1750x1900
	Dimension for 1500	mm	3250x1650x1700	3250x1650x1750	3250x1700x1800	3250x1750x1850	3250x1750x1900
	Dimension for 2000	mm	3700x1650x1700	3700x1650x1750	3700x1700x1800	3700x1750x1850	3700x1750x1900
	Dimension for 3000	mm	4710x1650x1700	4710x1650x1750	4710x1700x1800	4710x1750x1850	4710x1750x1900
