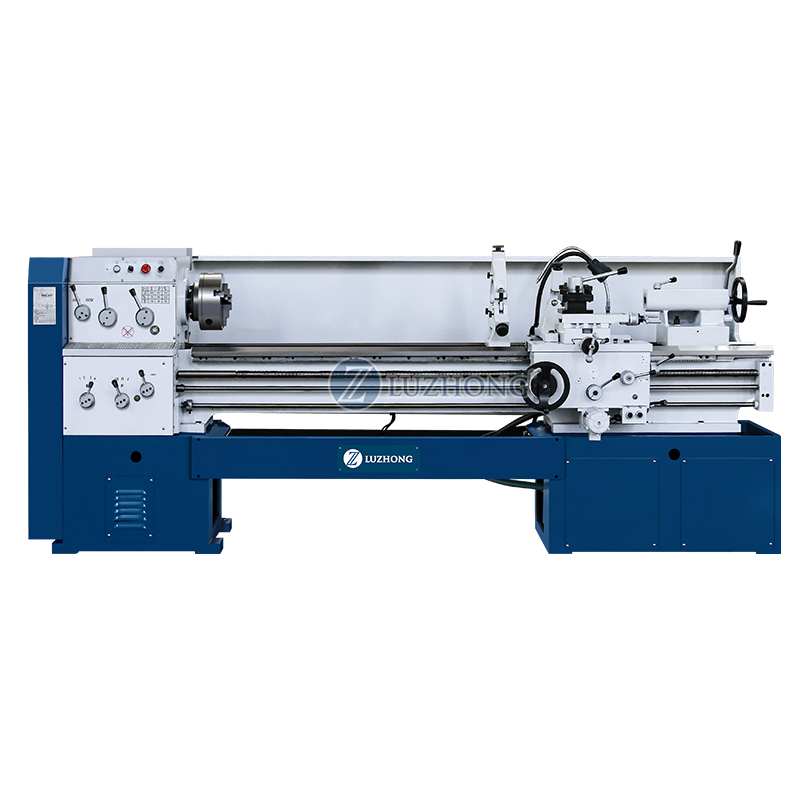

C6136普通车床

立即咨询暂无

产品描述

产品主要技术参数：

主要技术参数	SPECIFICATIONS	Units	C6132 C6232	C6136 C6236	C6140 C6240	C6150 C6250	C6160 C6260
床身上最大回转直径	Max Swing diameter over bed	mm	320	360	400	500	600
横滑板上最大回转直径	Max Swing diameter over cross slide	mm	150	190	230	330	400
马鞍上最大回转直径	Max Swing diameter over gap	mm	480	520	560	660	760
最大工件长度	Distance between centers	mm	750/1000/1500/2000/2800
主轴孔径	Spindle bore diameter	mm	52（选配 Opt.80）
主轴孔径锥度	Spindle bore taper	-	MT6 （选配Opt. 公制 Metric 1:20）
主轴转速范围	Spindle speed range	rpm	40-1400	40-1400	40-1400	40-1400	40-1400
主轴转速级数	Spindle speed steps	-	9	9	9	9	9
中拖板行程	Cross slide travel	mm	160	180	200	250	300
小刀架行程	Top tool post travel	mm	95	95	95	95	95
刀具尺寸	Tool size	mm	20*20	20*20	20*20	20*20	20*20
纵向进给量范围	Longitudinal feeds range	mm/r	0.0832-4.6569	0.0832-4.6569	0.0832-4.6569	0.0832-4.6569	0.0832-4.6569
横向进给量范围	Cross feeds range	mm/r	0.048-2.688	0.048-2.688	0.048-2.688	0.048-2.688	0.048-2.688
公制螺纹种数	Kinds of metric threads	kinds	19	19	19	19	19
公制螺纹范围	Range of metric threads	mm	0.25-14	0.25-14	0.25-14	0.25-14	0.25-14
英制螺纹种数	Kinds of inch threads	kinds	28	28	28	28	28
英制螺纹范围	Range of inch threads	T.P.I.	2-40	2-40	2-40	2-40	2-40
模数螺纹种数	Kinds of threads module	kinds	17	17	17	17	17
模数螺纹范围	Range of threads module	M.P.	0.25-3.5	0.25-3.5	0.25-3.5	0.25-3.5	0.25-3.5
尾座套筒直径	Tailstock quill diameter	mm	65	65	65	65	65
尾座套筒锥孔	Tailstock quill taper	-	MT4	MT4	MT4	MT5	MT5
尾架套筒行程	Tailstock quill travel	mm	130	130	130	130	130
主电机功率	Main motor power	kw	4	4	4	5.5	5.5
冷却电机功率	Coolant motor power	kw	0.09	0.09	0.09	0.09	0.09
机床重量 Machine weight	Weight for 750	kg	1100	1200	1220	1250	1300
	Weight for 1000	kg	1200	1300	1320	1350	1400
	Weight for 1500	kg	1400	1500	1520	1550	1600
	Weight for 2000	kg	1600	1700	1720	1750	1800
	Weight for 3000	kg	1800	1900	1920	1950	2000
外形尺寸(长×宽×高) Overall dimension （WHL）	Dimension for 750	mm	220011401500	220011401500	220011401550	220011401650	220011401750
	Dimension for 1000	mm	240011401500	240011401500	240011401550	240011401650	240011401750
	Dimension for 1500	mm	290011401500	290011401500	290011401550	290011401650	290011401750
	Dimension for 2000	mm	340011401500	340011401500	340011401550	340011401650	340011401750
	Dimension for 3000	mm	440011401500	440011401500	440011401550	440011401650	440011401750
