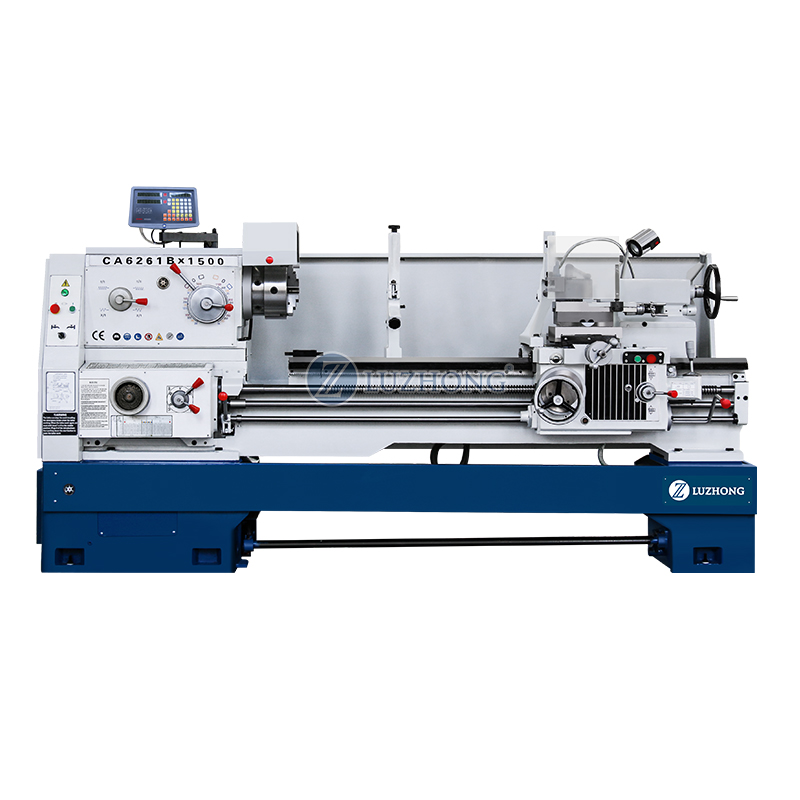

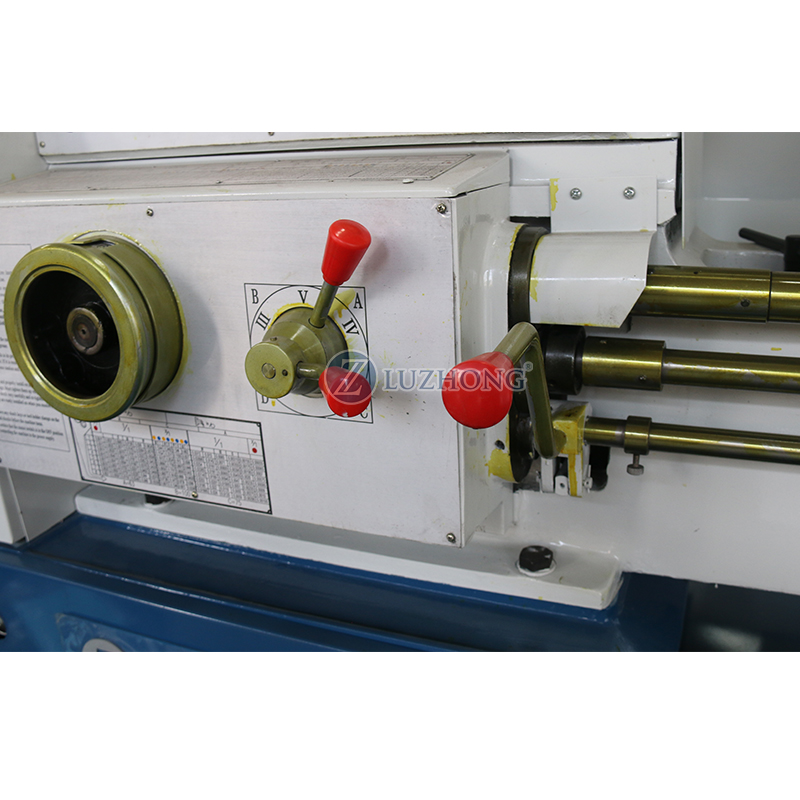

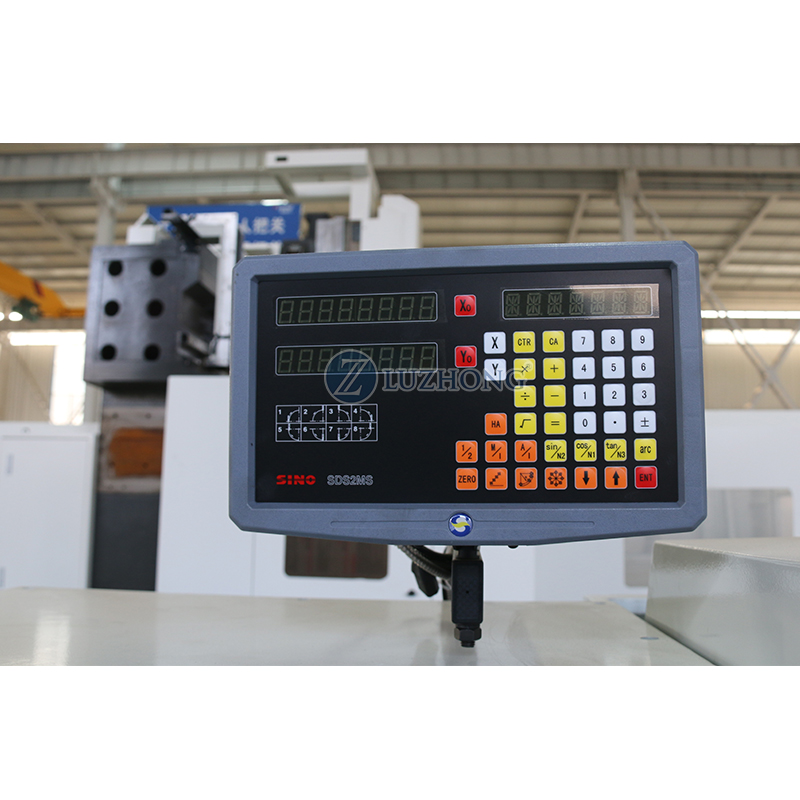

CA6161 卧式车床

立即咨询暂无

产品描述

产品主要技术参数：

主要技术参数	SPECIFICATIONS	Units	CA6140 CA6140B	CA6240 CA6240B	CA6150 CA6150B CA6150C	CA6250 CA6250B CA6250C	CA6161 CA6161B CA6161C		CA6261 CA6261B CA6261C
床身上最大回转直径	Swing over bed	mm	400		500		610
横滑板上最大回转直径	Swing over cross slide	mm	210		300		370
马鞍上最大回转直径	Swing over gap	mm	-	630	~	720	~		830
马鞍长度	Gap length	mm	~	210	~	210	~		210
最大工件长度	Distance between centers	mm	750/1000/1500/2000/3000/4000		750/1000/1500/2000/3000/4000			750/1000/1500/2000/3000/4000

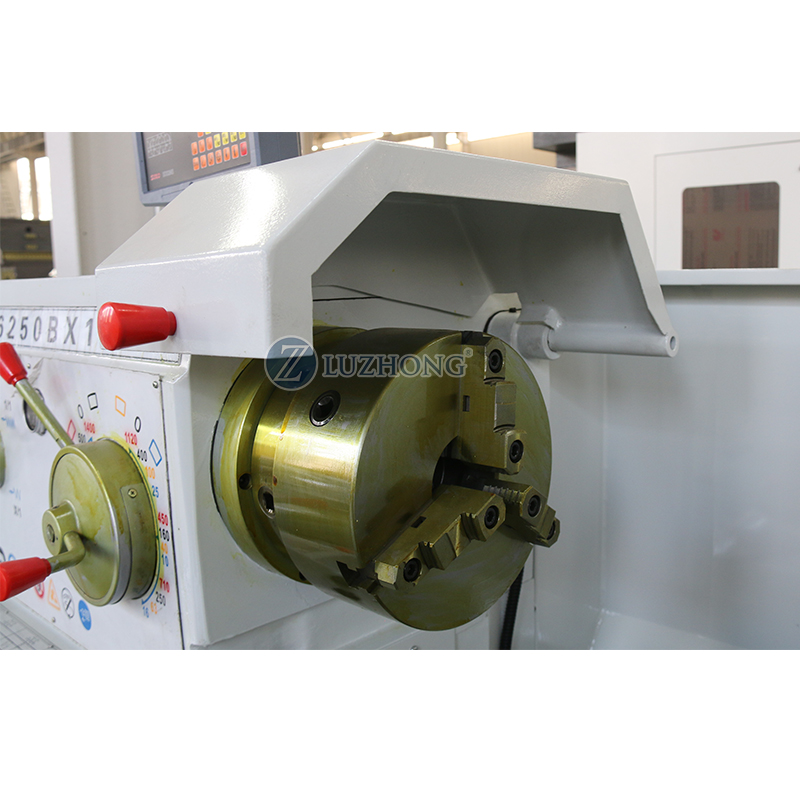

主轴孔径	Spindle bore	mm	52 B:80 C:105		B:80 C:105			B:80 C:105
主轴孔径锥度	Spindle bore taper	-	MT6 B:90 1:20 C:113 1:20		MT6 B:90 1:20 C:113 1:20			MT6 B:90 1:20 C:113 1:20

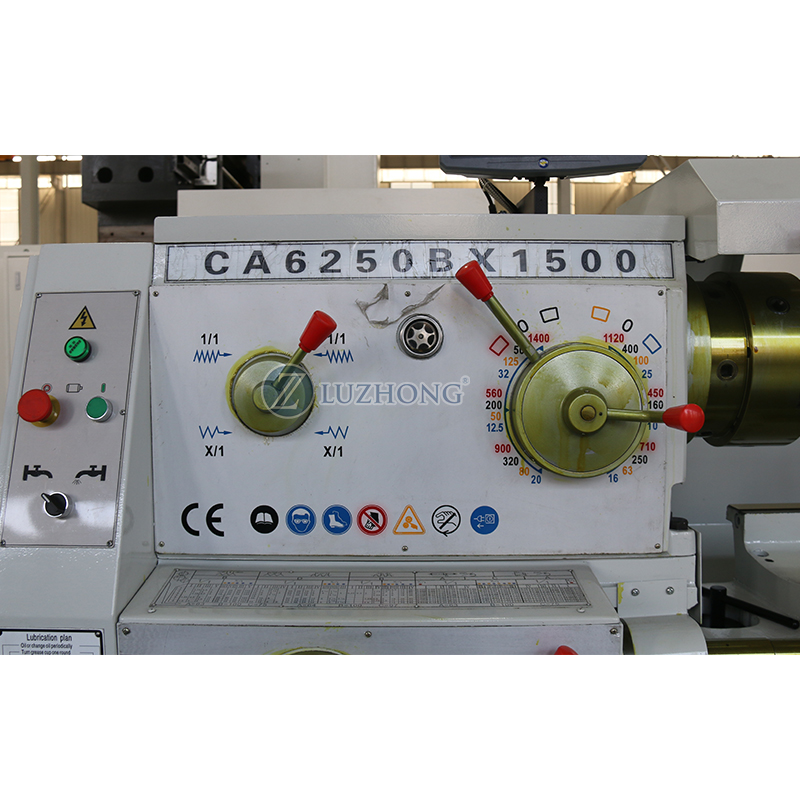

主轴转速范围	Spindle speed range	rpm	10-1400/16-1400		10-1400/16-1400		10-1400/16-1400
主轴转速级数	Spindle speed steps	-	24		24		24
中拖板行程	Cross slide travel	mm	320		320		360
小刀架行程	Top tool post travel		140		140		140
刀具尺寸	Tool size		25*25		25*25		25*25
纵向进给量种数	Longitudinal feeds kinds	kinds	64		64		64
纵向进给量范围	Longitudinal feeds range	mm/r	0.028-6.33		0.028-6.33		0.028-6.33
横向进给量种数	Cross feeds range kinds	kinds	64		64		64
横向进给量范围	Cross feeds range	mm/r	0.014-3.16		0.014-3.16		0.014-3.16
纵向快移速度	Longitudinal fast moving	m/min	4		4		4
横向快移速度	Cross fast moving	m/min	2		2		2
公制螺纹种数	Kinds of metric threads	kinds	44		44		44
公制螺纹范围	Range of metric threads	mm	1-192		1-192		1-192
英制螺纹种数	Kinds of inch threads	kinds	21		21		21
英制螺纹范围	Range of inch threads	T.P.I.	2~24		2~24		2~24
模数螺纹种数	Kinds of module threads	kinds	39		39		39
模数螺纹范围	Range of module threads	M.P.	0.25-48		0.25-48		0.25-48
径节螺纹种数	Kinds of diametral threads hreads	kinds	37		37		37
径节螺纹范围	Range of diametral threads hreads	D.P.	1-96		1-96		1-96
尾座套筒直径	Tailstock quill diameter	mm	75		75		75
尾座套筒锥孔	Tailstock quill taper	-	MT5		MT5		MT5
尾架套筒行程	Tailstock quill travel	mm	150		150		150

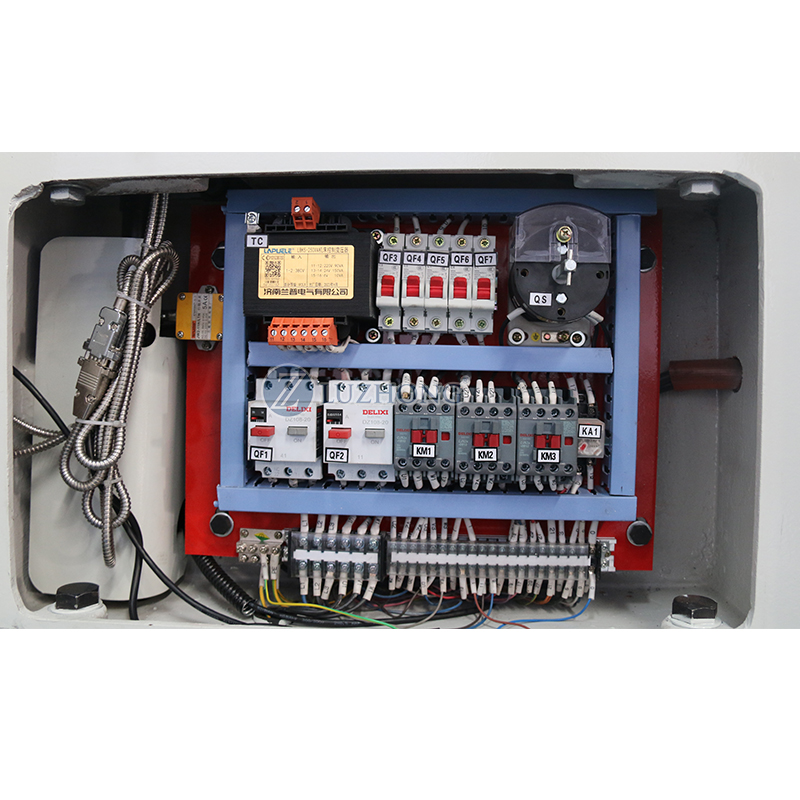

主电机功率	Main motor power	kw	7.5		7.5		7.5
冷却电机功率	Coolant motor power	kw	0.09		0.09		0.09
机床重量 Machine weight	Weight for 750	kg	2000		2100		2200
	Weight for 1000	kg	2100		2200		2300
	Weight for 1500	kg	2300		2400		2500
	Weight for 2000	kg	2600		2700		2800
	Weight for 3000	kg	3300		3500		3700
	Weight for 4000	kg	3800		4000		4200
外形尺寸(长×宽×高) Overall dimension （WHL）	Dimension for 750	mm	244011501600		244011501700		244011501800
	Dimension for 1000	mm	265011501600		265011501700		265011501800
	Dimension for 1500	mm	315011501600		315011501700		315011501800
	Dimension for 2000	mm	365011501600		365011501700		365011501800
	Dimension for 3000	mm	480011501600		480011501700		480011501800
	Dimension for 4000	mm	568011501600		568011501700		568011501800
