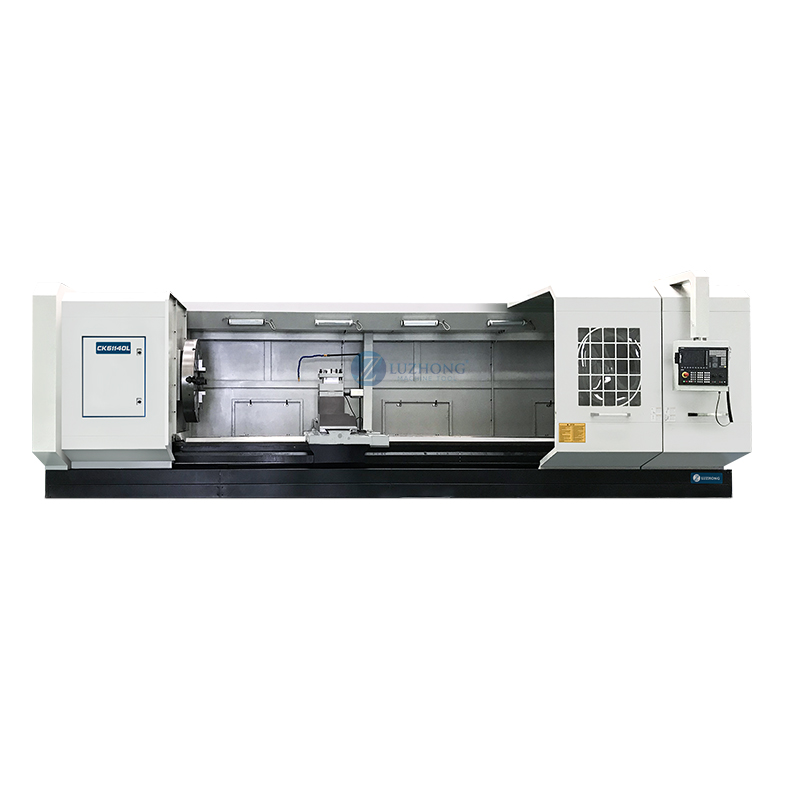

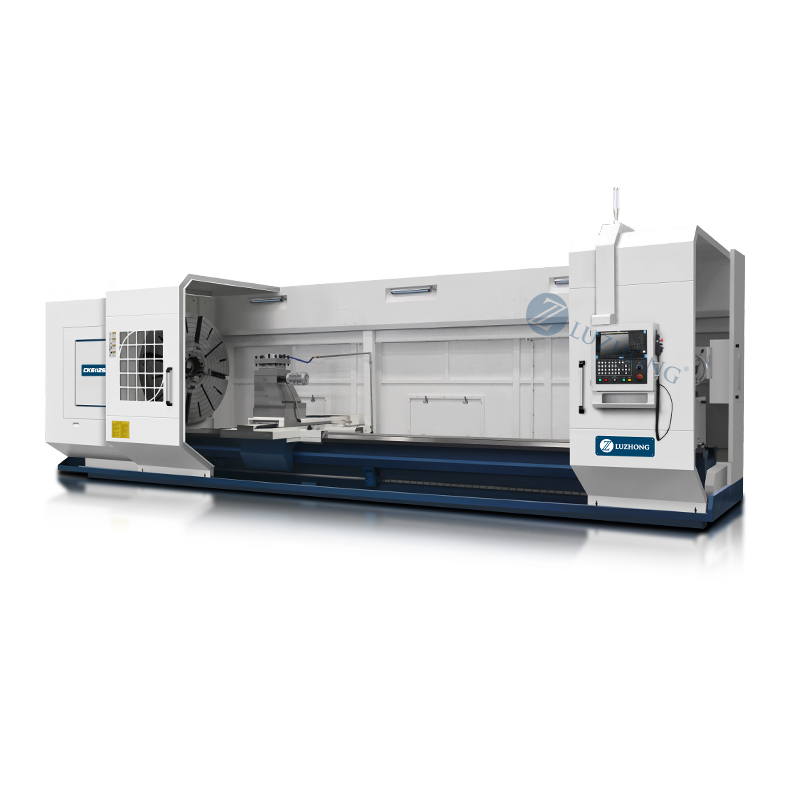

CK61125G CK61140G CK61160G CK61180G CK61200G 数控车床

CK61125G CK61140G CK61160G CK61180G CK61200G 数控车床

立即咨询暂无

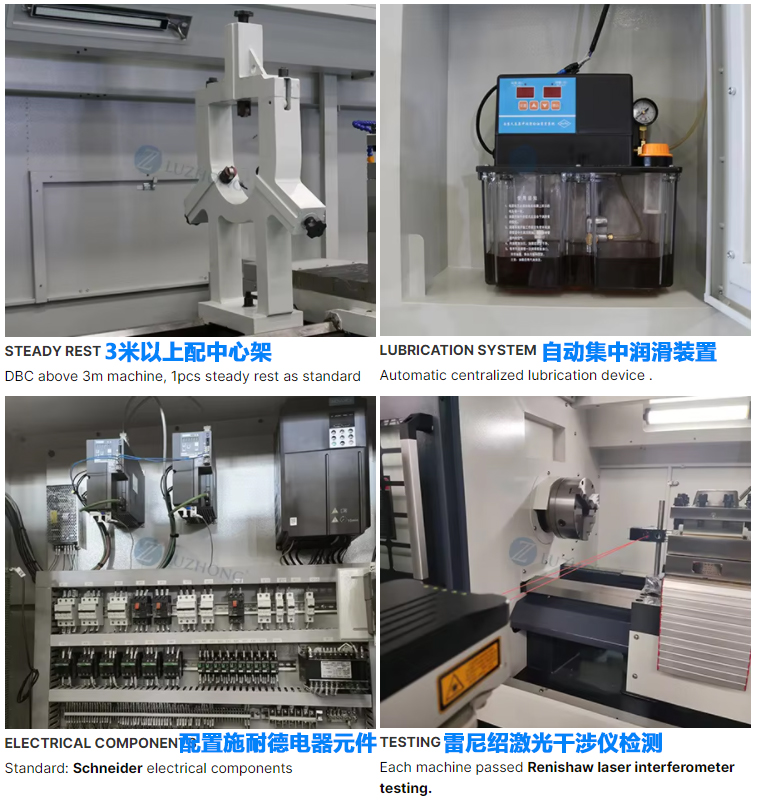

产品描述

产品主要技术参数:

主要技术参数	SPECIFICATIONS	Units	CKL61125G	CKL61140G	CKL61160G	CKL61180G	CKL61200G
床身上最大回转直径	Swing over bed	mm	1250	1440	1640	1840	2020
横滑板上最大回转直径	Swing over cross slide	mm	710	820	1020	1220	1420
最大工件长度	Distance between centers	mm	3000-10000	3000-10000	3000-10000	3000-10000	3000-10000

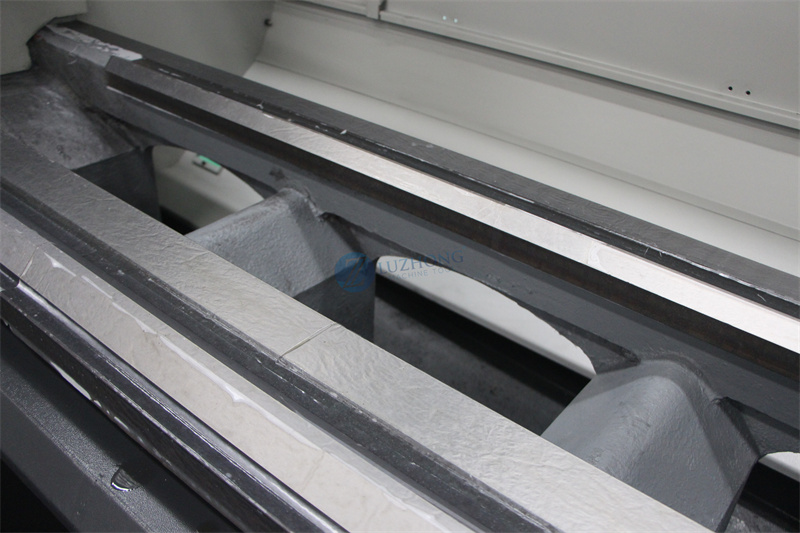

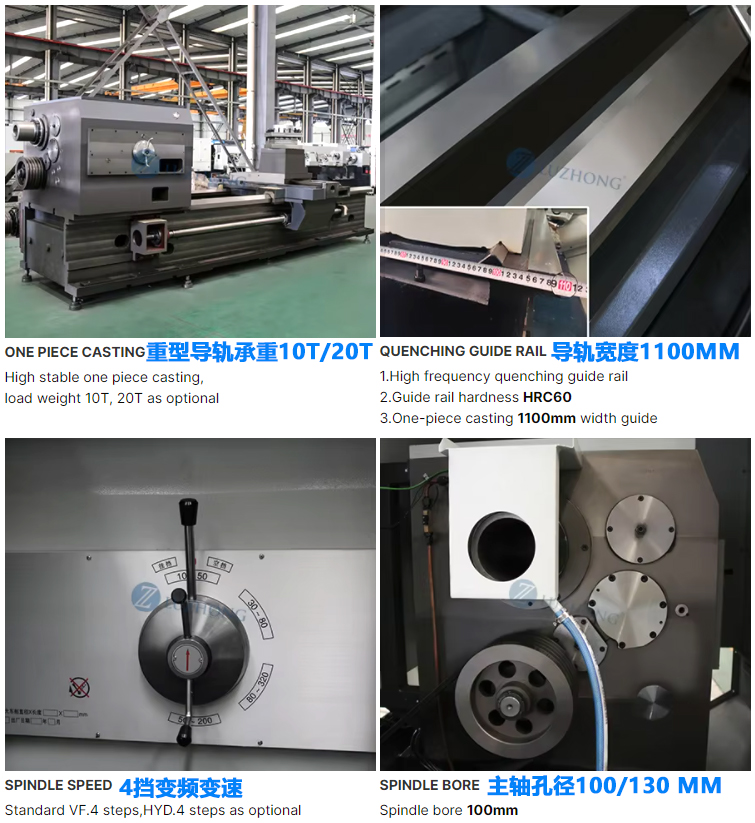

床身导轨宽度	Guideway width	mm	1100	1100	1100	1100	1100
床身承重范围	Max. load capacity	T	10/20/30	10/20/30	10/20/30	10/20/30	10/20/30
主轴孔径范围	Spindle bore	mm	100	100	100	100	100
主轴孔径锥度	Spindle bore taper	-	公制120 Metric 120	公制120 Metric 120	公制120 Metric 120	公制120 Metric 120	公制120 Metric 120
主轴鼻端型号	Spindle nose type	-	A2-15	A2-15	A2-15	A2-15	A2-15
主轴转速级数	Spindle speed steps	-	4档变频 VF. 4steps	4档变频 VF. 4 steps	4档变频 VF. 4steps	4档变频 VF. 24steps	4档变频 VF. 4 steps
主轴转速范围	Spindle speed range	rpm	10-300	10-300	10-300	10-200	10-200

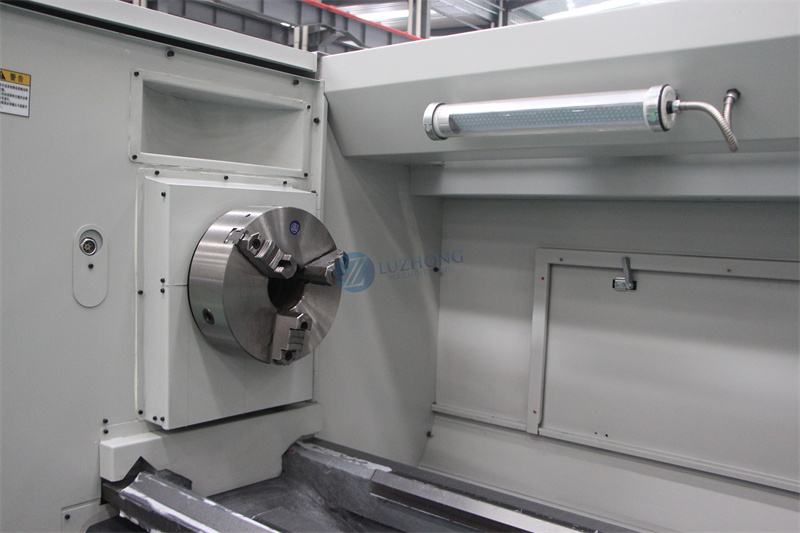

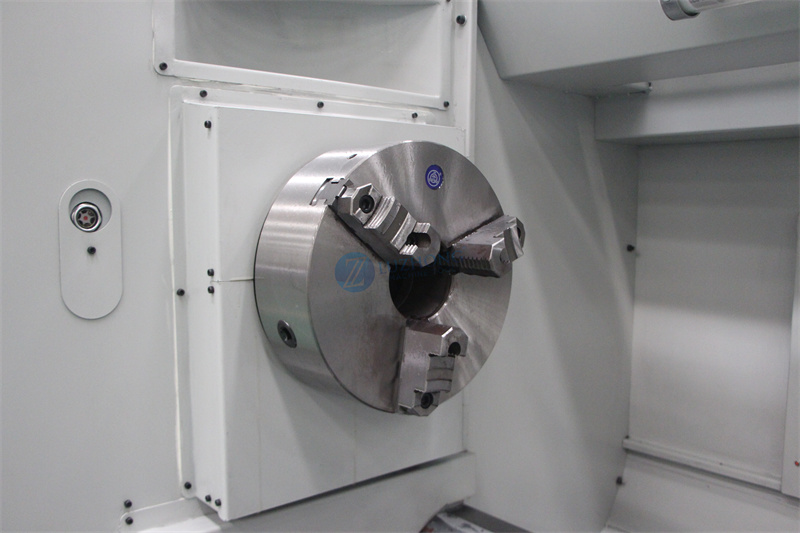

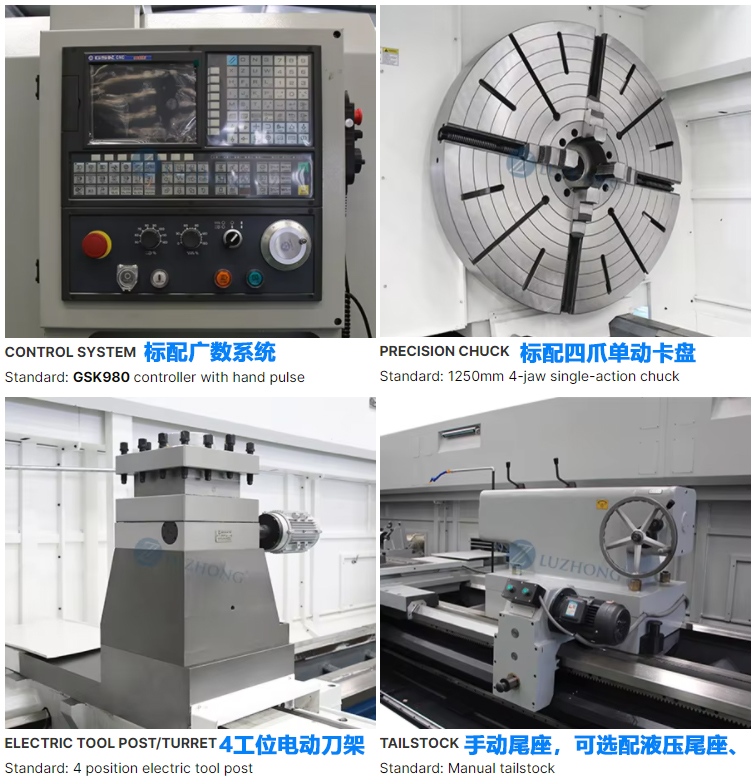

卡盘规格	Chuck	mm	φ1250手动四爪 φ1250 4-jaw manual			φ1400手动四爪 φ1400 4-jaw manual

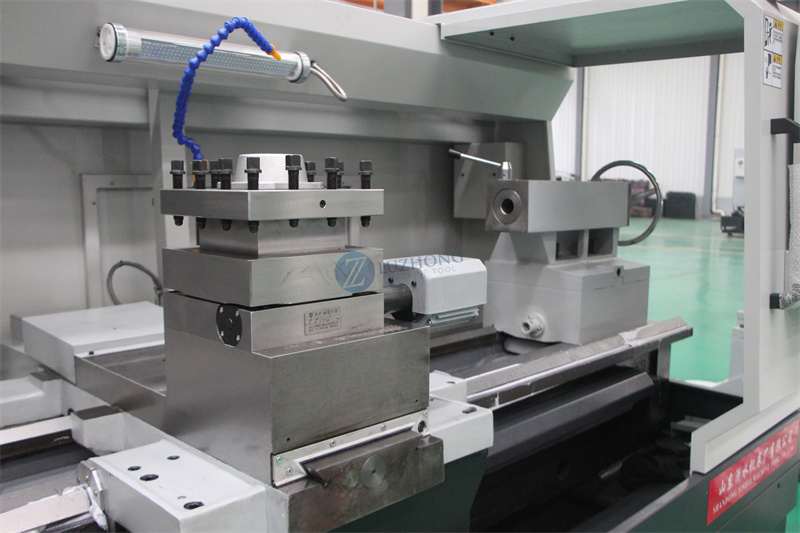

刀架类型	Turret/tool post	-	4工位电动刀架 Electric 4 position			4工位电动刀架 Electric 4 position
刀具尺寸	Tool size	mm	50 x 50	50 x 50	50 x 50	50 x 50	50 x 50
X轴行程	X axis travel	mm	700	750	830	930	1020
Z轴行程	Z axis travel	mm	2850-9850	2850-9850	2850-9850	2850-9850	2850-9850
X轴快速进给速度	X axis rapid traverse	mm/min	4000	4000	4000	4000	4000
Z轴快速进给速度	Z axis rapid traverse	mm/min	6000	6000	6000	6000	6000
尾座套筒直径	Tailstock quill diameter	mm	φ220	φ220	φ220	φ220	φ220
尾座套筒锥度	Tailstock quill taper	-	公制80 Metric 80	公制80 Metric 80	公制80 Metric 80	公制80 Metric 80	公制80 Metric 80
尾座套筒行程	Tailstock quill travel	mm	300	300	300	300	300
主轴电机	Main spindle motor	kw	37	37	37	37	37
冷却泵电机	Coolant pump motor	kw	0.25	0.25	0.25	0.25	0.25
机床重量 Machine weight	Dimension for 3000	kg	226000	236000	246000	256000	266000
	Dimension for 5000	kg	244000	254000	264000	274000	284000
	Dimension for 8000	kg	271000	281000	291000	301000	311000
	Dimension for 10000	kg	289000	299000	309000	319000	329000
外形尺寸 Overall dimension	Dimension for 3000	mm	6700x2550 x2350	6700x2600 x2400	6700x2700 x2560	6700x2800 x2760	6700x2900 x2900
	Dimension for 5000	mm	8700x2550 x2350	8700x2600 x2400	8700x2700 x2560	8700x2800 x2760	8700x2900 x2900
	Dimension for 8000	mm	11700x2550 x2350	11700x2600 x2400	11700x2700 x2560	11700x2800 x2760	11700x2900 x2900
	Dimension for 10000	mm	13700x2550 x2350	13700x2600 x2400	13700x2700 x2560	13700x2800 x2760	13700x2900 x2900
