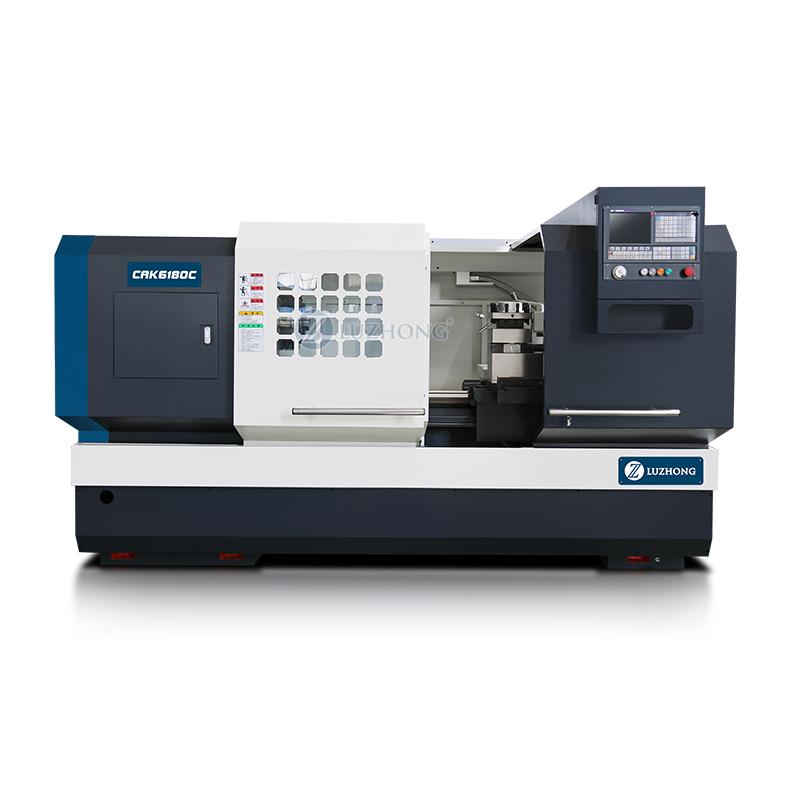

CAK6160 CAK6166 CAK6180 数控车床

立即咨询暂无

产品描述

产品主要技术参数：

主要技术参数	SPECIFICATIONS	Units	CAK6140 CAK6140B	CAK6150 CAK6150B CAK6150C	CAK6161 CAK6161B CAK6161C	CAK6166 CAK6166B CAK6166C	CAK6180 CAK6180B CAK6180C
床身上最大回转直径	Swing over bed	mm	400	500	610	660	800
横滑板上最大回转直径	Swing over cross slide	mm	180	250	350	380	520
最大工件长度	Distance between centers	mm	750/1000/1500/2000/3000	750/1000/1500/2000/3000	750/1000/1500/2000/3000	750/1000/1500/2000/3000	750/1000/1500/2000/3000
主轴孔径	Spindle bore	mm		52	(80 for B)	[105 for C]
主轴孔径锥度	Spindle bore taper	-		MT6	(90 1:20 for B)	[113 1:20 for C]
主轴端部形式	Spindle nose type	-		C6	(D8 for B)	[D8 for C]
主轴转速级数	Spindle speed steps	-	手动3档 Manual 3 steps	手动3档 Manual 3 steps	手动3档 Manual 3 steps	手动3档 Manual 3 steps	手动3档 Manual 3 steps
主轴转速范围	Spindle speed range	rpm	20-1500	20-1500	20-1500	20-1500	20-1500

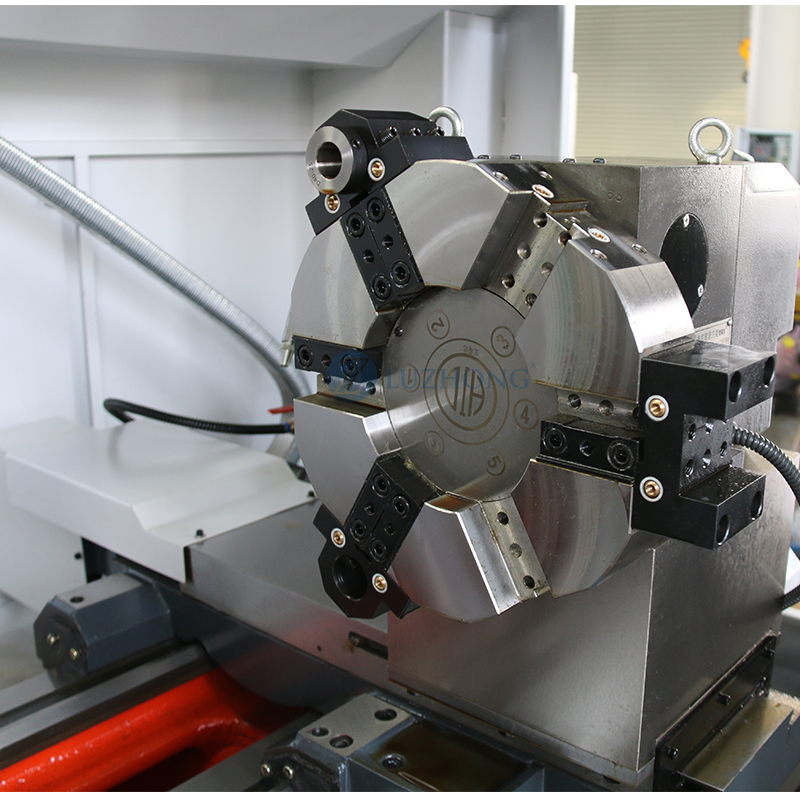

刀架类型	Turret/tool post	-	4工位电动刀架 Electric 4 position	4工位电动刀架 Electric 4 position	4工位电动刀架 Electric 4 position	4工位电动刀架 Electric 4 position	4工位电动刀架 Electric 4 position
刀具尺寸	Tool size	mm	25*25	25*25	25*25	25*25	25*25
X轴行程	X axis travel	mm	200	250	310	330	400
Z轴行程	Z axis travel	mm	550/800/1300/1800/2800	550/800/1300/1800/2800	550/800/1300/1800/2800	550/800/1300/1800/2800	550/800/1300/1800/2800
X轴快速进给速度	X axis rapid traverse	mm/min	6000	6000	6000	6000	6000
Z轴快速进给速度	Z axis rapid traverse	mm/min	8000	8000	8000	8000	8000
尾座套筒直径	Tailstock quill diameter	mm	75	75	75	75	75
尾座套筒锥度	Tailstock quill taper	-	MT5	MT5	MT5	MT5	MT5
尾座套筒行程	Tailstock quill travel	mm	150	150	150	150	150
主电机功率	Main motor power	kw	7.5	7.5	7.5	11	11
冷却电机功率	Coolant motor power	kw	0.125	0.125	0.125	0.125	0.125
机床重量 Machine weight	Weight for 750	kg	2450	2500	2550	2650	2750
	Weight for 1000	kg	2550	2600	2650	2750	2850
	Weight for 1500	kg	2650	2700	2750	2850	2950
	Weight for 2000	kg	3050	3150	3250	3350	3450
	Weight for 3000	kg	3850	3950	4050	4150	4250
外形尺寸(长×宽×高) Overall dimension (LWH)	Dimension for 750	mm	255016501700	255016501750	255017001800	255017501850	255017501900
	Dimension for 1000	mm	275016501700	275016501750	275017001800	275017501850	275017501900
	Dimension for 1500	mm	325016501700	325016501750	325017001800	325017501850	325017501900
	Dimension for 2000	mm	370016501700	370016501750	370017001800	370017501850	370017501900
	Dimension for 3000	mm	471016501700	471016501750	471017001800	471017501850	471017501900
