产品主要技术参数：
| 主要技术参数 | SPECIFICATION | Units | QK1313 |
| 手动换档 Manual | |||
| 床身上最大回转直径 | Swing over bed | mm | 630/800 |
| 横滑板上最大回转直径 | Swing over cross slide | mm | 340/520 |
| 最大工件长度 | Distance between centers | mm | 1000/1500/3000 |
| 加工管螺纹直径范围 | Pipe threading range | mm | 30-126 |
| 床身导轨宽度 | Guideway width | mm | 550 |
| 床身承重范围 | Max. load capacity | T | 3 |
| 主轴孔径范围 | Spindle bore | mm | 130 |
| 主轴转速级数 | Spindle speed steps | - | 3档变频VF. 3 steps |
| 主轴转速范围 | Spindle speed range | rpm | 30-720 |
| 卡盘规格 | Chuck | mm | φ400手动三爪φ400 3-jaw manual |

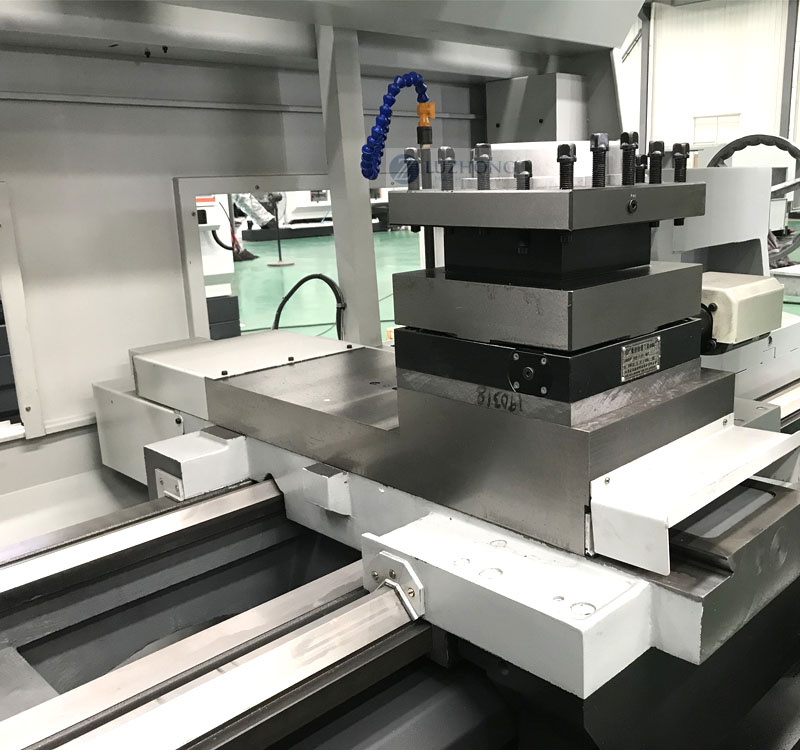

| 刀架类型 | Turret/tool post | - | 4工位电动刀架CNC turret 4 position |
| 刀具尺寸 | Tool shank size | mm | 32 x 32 |
| X轴行程 | X axis travel | mm | 320/420 |
| Z轴行程 | Z axis travel | mm | 850/1350/2850 |
| X轴快速进给速度 | X axis rapid traverse | mm/min | 4000 |
| Z轴快速进给速度 | Z axis rapid traverse | mm/min | 6000 |

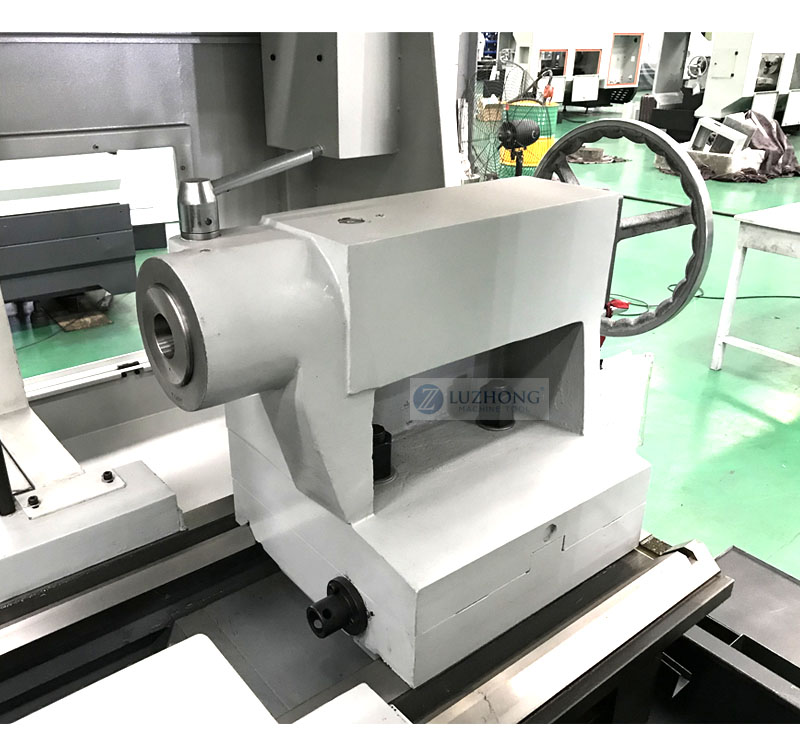

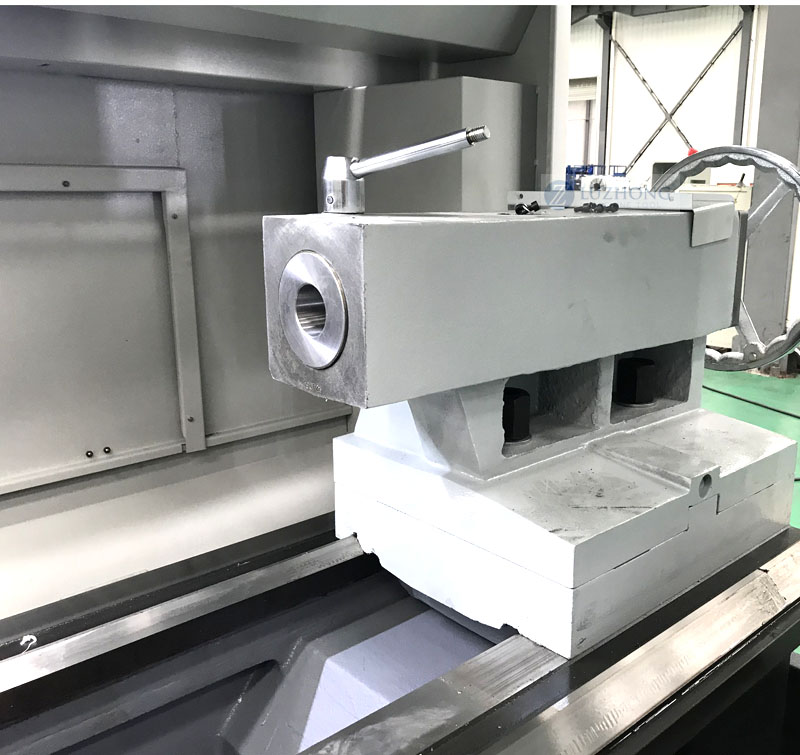

| 尾座套筒直径 | Tailstock quill diameter | mm | φ100 |
| 尾座套筒锥度 | Tailstock quill taper | - | MT5 |
| 尾座套筒行程 | Tailstock quill travel | mm | 250 |
| 主轴电机 | Main spindle motor | kW | 11 |
| 冷却泵电机 | Coolant pump motor | kW | 0.125 |
| 机床重量Machine weight | Weight for 1000 | kg | 4500 |
| Weight for 1500 | kg | 5000 | |
| Weight for 3000 | kg | 6000 | |
| 外形尺寸Overall dimension | Dimension for 1000 | mm | 3300x1800x1850 |
| Dimension for 1500 | mm | 3800x1800x1850 | |
| Dimension for 3000 | mm | 5300x1800x1850 |
