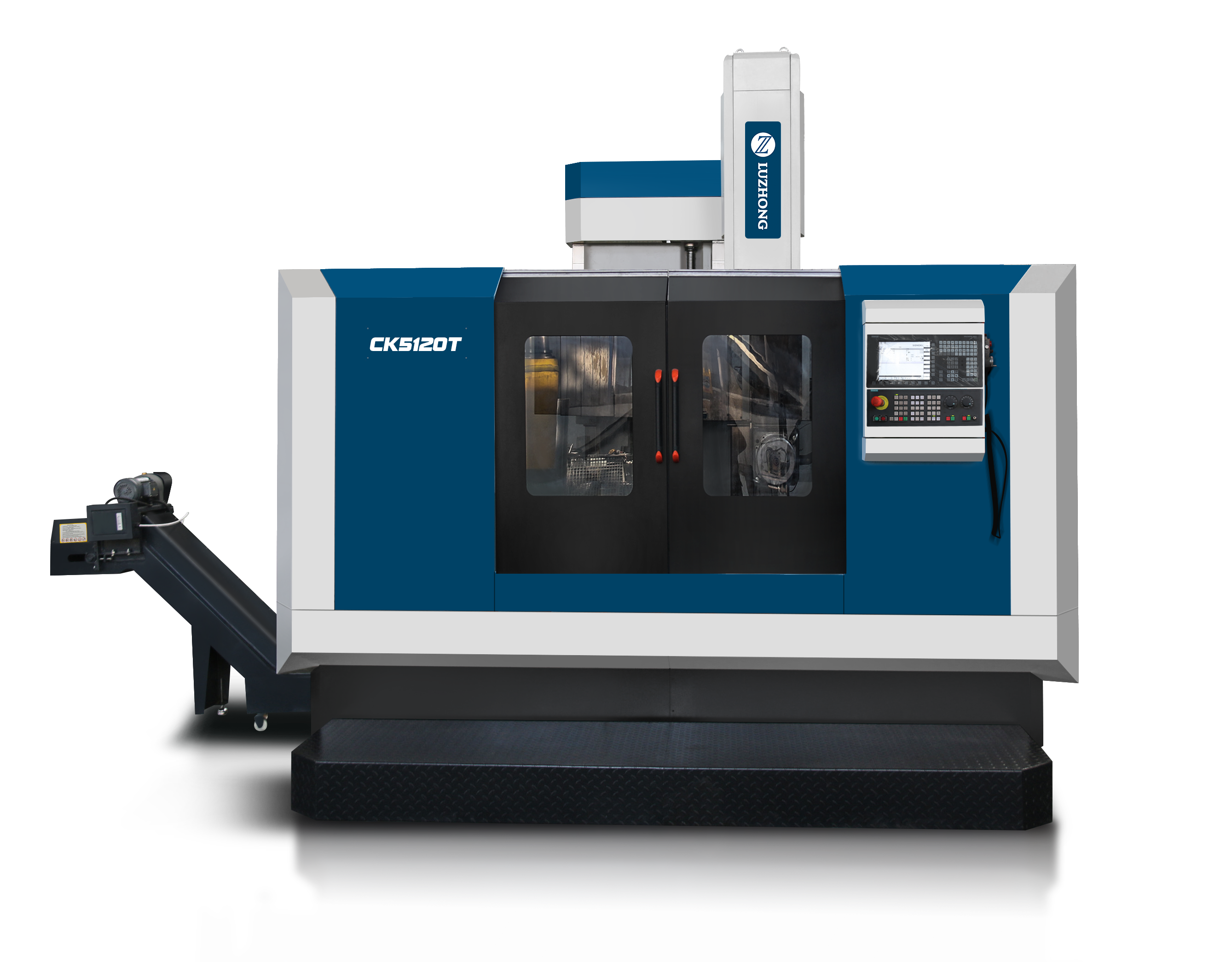

产品主要技术参数：
| SPECIFICATIONS | Units | CK5112T | CK5116T | CK5120T | CK5125T | |
| 最大回转直径 | Max. Swing diameter | mm | 1400 | 1600 | 2000 | 2500 |
| 最大车削直径 | Max. Turning diameter | mm | 1250 | 1600 | 2000 | 2500 |
| 最大车削高度 | Max.turning height | mm | 1000 | 1000 | 1000 | 1200 |
| 工作台直径 | Worktable diameter | mm | 1000 | 1400 | 1800 | 2250 |
| 工作台承重 | Worktable load | kg | 4000 | 6000 | 8000 | 8000 |
| 主轴转速范围(双速) | Spindle speed range (two-speed motor) | rpm | 5-400 | 2.5-315 | 2.5-250 | 3-200 |
| 主轴输出扭矩 | Spindle output torque | nm | 8000 | 12500 | 20000 | 20000 |
| 刀塔形式 | Turret type | 4工位station | 4工位station | 4工位station | 4工位station | |
| 刀塔规格 | Turret spec. | mm | 320 | 320 | 320 | 320 |
| 刀具尺寸 | Tool size | mm | □40/φ80 | □40/φ80 | □40/φ80 | □40/φ80 |
| 刀塔 X 轴行程 | Turret travel X axis | mm | -700 | -1050 | -1250 | -1450 |
| 刀塔 Z 轴行程 | Turret travel Z axis | mm | 650 | 650 | 650 | 650 |
| 横梁升降行程 | Cross beam lifting stroke | mm | 700 | 700 | 700 | 700 |
| X 轴快速进给 | X-axis rapid traverse | m/min | 15 | 15 | 15 | 15 |
| Z 轴快速进给 | Z-axis rapid traverse | m/min | 12 | 12 | 12 | 12 |
| 切削进给 | Cutting feeding | m/min | 0.1-5000 | 0.1-5000 | 0.1-5000 | 0.1-5000 |
| X/Z 线轨+硬轨 | X/Z axis linear rail + hard rail | 55/45 滚柱 +硬轨 55/45 Roller guide + hard guide | ||||
| 主轴电机功率/扭矩 | Main motor power/torque | kw-nm | 22/30- 210 | 22/30- 210 | 30/37- 286 | 30/37- 286 |
| 外形尺寸(长×宽×高) | Overall size (L*W*H) | m | 3.8*2.8*3.5 | 4.2*3*3.5 | 4.6*3.5*3.5 | 4.8*3.6*3.8 |
| 机床重量 | Machine weight | kg | 13800 | 16500 | 18500 | 20800 |
| 硬轨线轨结合；4 工位刀塔 Hard guideway and linear guideway combination,4 station electric turret | ||||||
