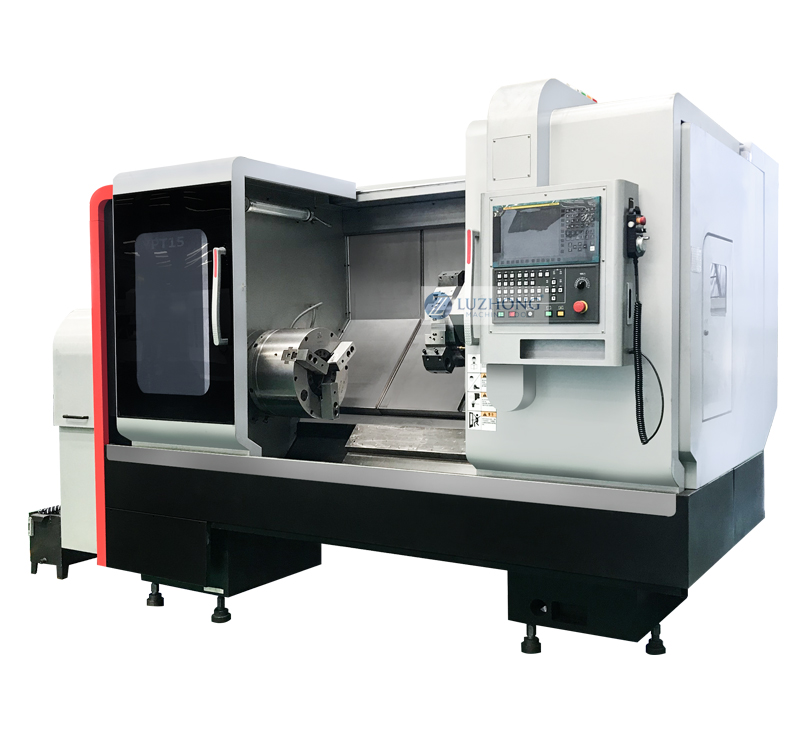

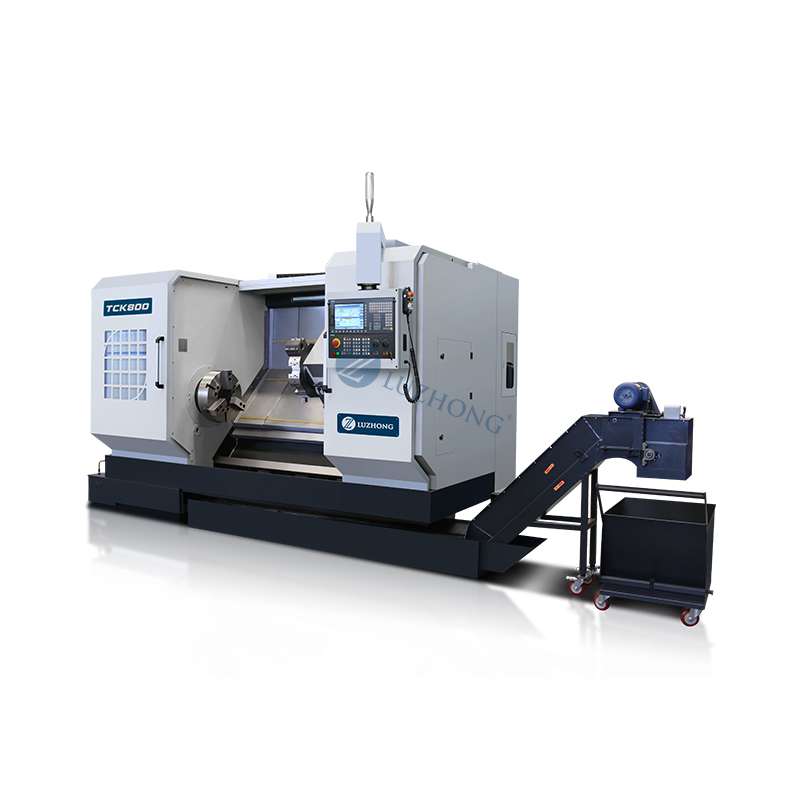

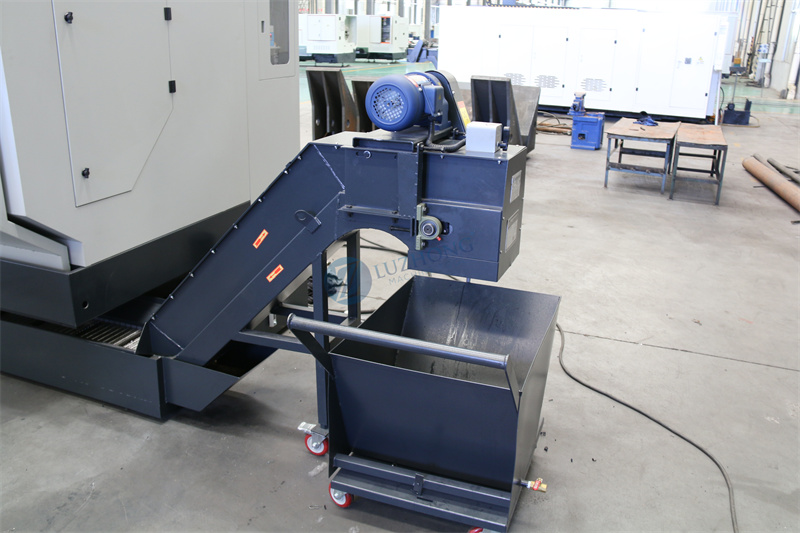

TCK630斜床身数控车床

立即咨询暂无

产品描述

产品主要技术参数:

主要技术参数	SPECIFICATIONS	Units	TCK500	TCK630		TCK800
床身上最大回转直径	Swing over bed	mm	500	630		800
床鞍滑体上最大直径	Swing over cross slide	mm	380	440		650
最大工件长度	Distance between centers	mm	500/1000/1500/2000/3000	1000/1500/2000/3000		1000/1500/2000/3000
床身斜度	Guideway width	°	45	45		45
主轴孔径范围	Spindle bore	mm	82	105		105
主轴转速级数	Spindle speed steps	-	无极变速/Stepless	无极变速/Stepless		无极变速/Stepless
主轴转速范围	Spindle speed range	rpm	35-3000	150-1500		50-1500

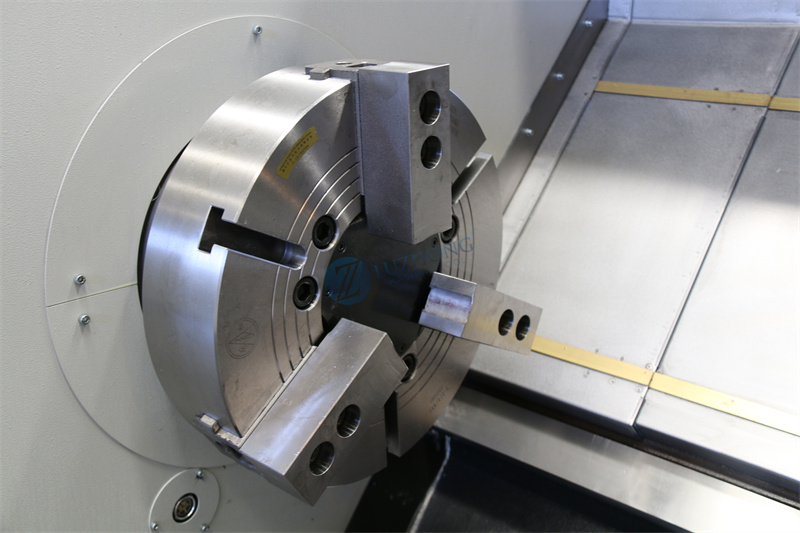

卡盘规格	Chuck	in	10in 液压卡盘/10in Hydraulic chuck	15in 液压卡盘/15in Hydraulic chuck		15in 液压卡盘/15in Hydraulic chuck

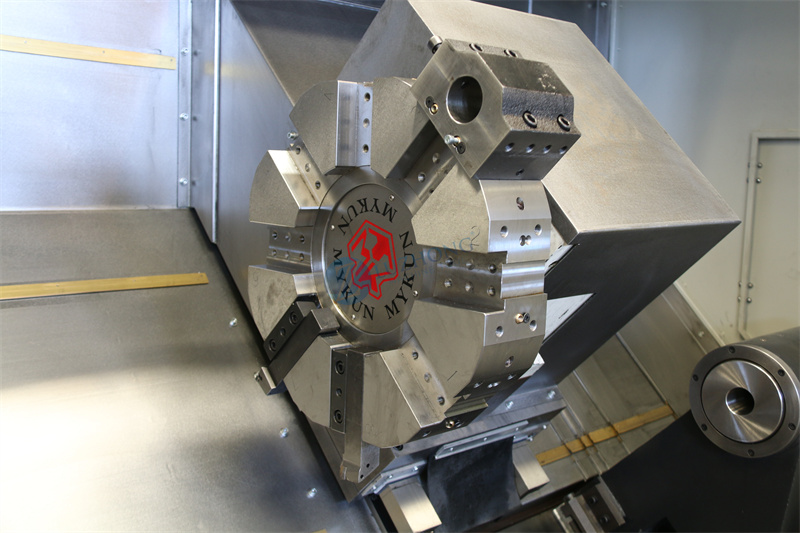

刀架类型	Turret/tool post	-	8工位液压刀塔/Hydraulic turret 8position	8工位液压刀塔/Hydraulic turret 8position		12工位液压刀塔/Hydraulic turret 12position
刀具尺寸	Tool shank size	mm	25 x 25	32 x 32		32 x 32
镗刀座孔径	Boring tool holder size	mm	φ40	φ50		φ50
X轴行程	X axis travel	mm	300	335		400
Z轴行程	Z axis travel	mm	500/1000/1500/2000/3000	1000/1500/2000/3000		1000/1500/2000/3000
X轴快速进给速度	X axis rapid traverse	mm/min	10000线轨Linear guideway	4000硬轨Hard	10000线轨Linear	10000线轨Linear guideway
Z轴快速进给速度	Z axis rapid traverse	mm/min	15000线轨Linear guideway	6000硬轨Hard	15000线轨Linear	15000线轨Linear guideway

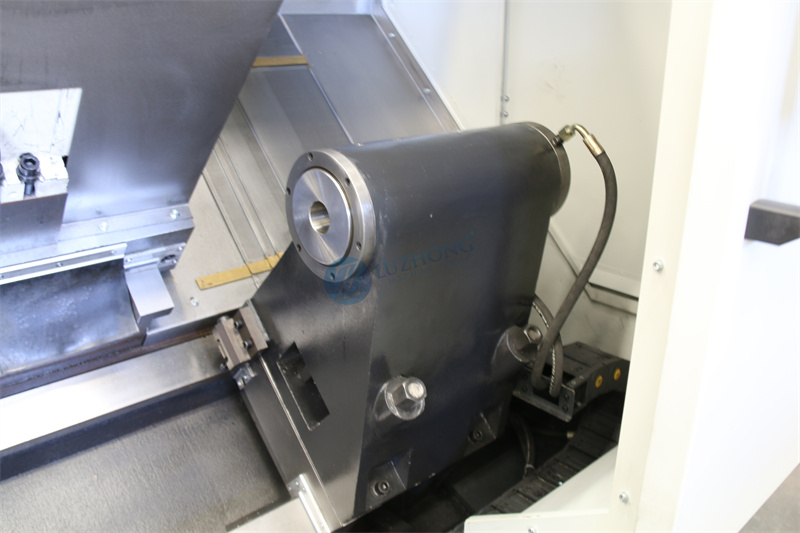

尾座套筒直径	Tailstock quill diameter	mm	φ75	φ130		φ130
尾座套筒锥度	Tailstock quill taper	-	MT5	MT5		MT5
尾座套筒行程	Tailstock quill travel	mm	150	150		150
主轴电机	Main spindle motor	kw	15	15		22
冷却泵电机	Coolant pump motor	kw	0.37	0.37		0.37
机床重量Machine weight	Weight for 500	kg	6000	6500		7000
	Weight for 1000	kg	6500	7000		7500
	Weight for 1500	kg	7000	7500		8000
	Weight for 2000	kg	7500	8000		9000
	Weight for 3000	kg	8500	9000		9500
外形尺寸Overall dimension	Dimension for 500	mm	4350x1800x1800	-		-
	Dimension for 1000	mm	4850x1800x1800	4850x2050x2300		4850x2570x2400
	Dimension for 1500	mm	5350x1800x1800	5350x2050x2300		5350x2570x2400
	Dimension for 2000	mm	5850x1800x1800	5850x2050x2300		5850x2570x2400
	Dimension for 3000	mm	6850x1800x1800	6850x2050x2300		6850x2570x2400
